Requirements for rotary motion show a very broad range of different sizes, load capacity, and positioning accuracy. PI offers stages with all kinds of motorization and guiding options: air-bearing, torque motor driven, motorized worm-gear coupled, tiny piezomotor stages and specialized goniometer stages with orthogonal tip-tilt mounting option. All of them can be mounted to multi-axis combinations with corresponding linear, vertical and XY stages.

Rotation Stages with PIMag® Magnetic Direct-Drive Torque Motor

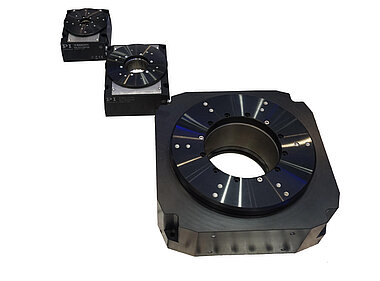

V-62x High-Precision Rotation Stage with Direct Drive

Ideal for Indexing, Positioning, Scanning, Measuring Technology

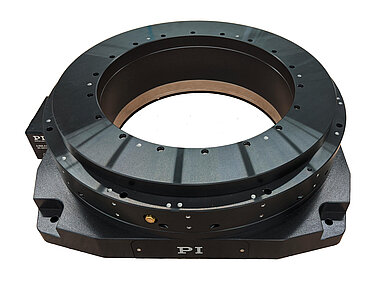

A-68x PIglide Rotation Stage with Air Bearing

Large Aperture, Friction Free, Motorized
  • Friction-free, motorized
  • ⌀365mm motion platform
  • ⌀260 mm aperture
  • Eccentricity/flatness &lt
  • 300nm

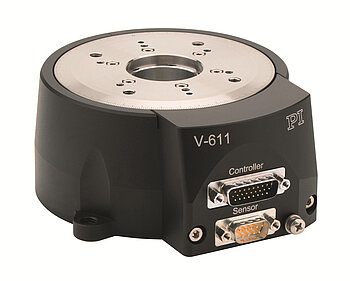

V-611 Rotation Stage

High Load Capacity and Long Lifetime for Industrial Applications

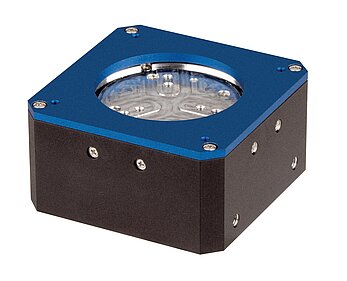

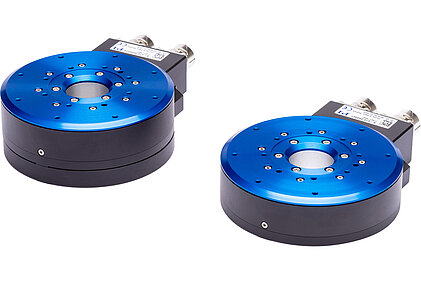

V-610 Compact PIMag® Rotation Stage

Flat Design at High-Torque for Loads up to 2 kg

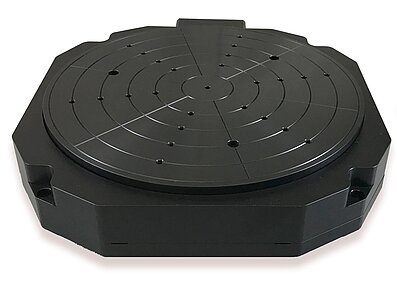

A-63x PIglide RL Flat Rotation Stage with Air Bearing

Friction-free, Motorized
  • Friction-free, motorized
  • Low profile
  • Eccentricity/flatness &lt
  • 100nm
  • Self-locking option

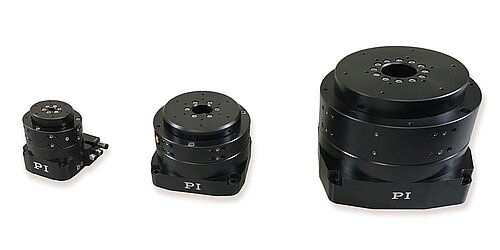

A-62x PIglide RM Rotation Stage with Air Bearings

Friction-Free, Ideal for Indexing, Positioning, Scanning, Measuring Technology
  • Friction-Free
  • Motion platform 50mm to 300mm
  • Load capacity up to 4170N
  • Eccentricity/flatness &lt
  • 200nm
  • mounted vertically or horizontally

Rotation Stages with Stepper, DC & Brushless DC (BLDC) Motors

NEW

G-902.RxI ACS Driver Module

For 4 Drive Axes with AC Servo Motor, DC Motor, Voice Coil Motor, Stepper Motor
  • ACS driver module for 4 drive axes, as benchtop device or control cabinet module, directly compatible with positioners from PI.
NEW

G-902.RxE Motion Controller

Integrated Driver for up to 4 Drive Axes with AC Servo Motor, DC Motor, Voice Coil Motor, Stepper Motor
  • ACS motion controller with integrated ACS driver for 2 or 4 drive axes, directly compatible with positioners from PI.

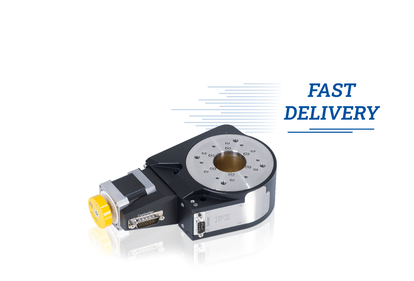

L-611 Precision Rotation Stage

High Travel Accuracy

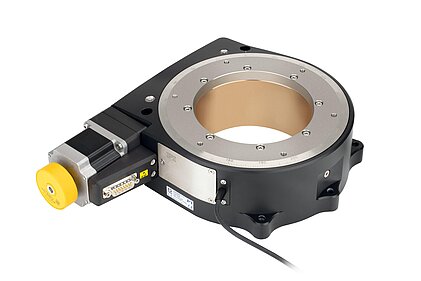

PRS-200 Precision Rotation Stage

Large Aperture, High Travel Accuracy

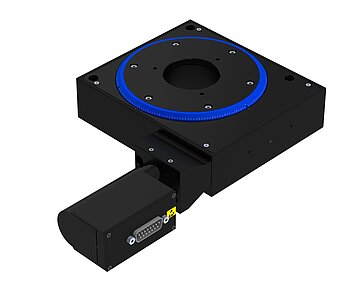

M-060 • M-061 • M-062 Precision Rotation Stage

Unlimited Travel Range

Miniature Rotation Stages with Q-Motion & PILine® Drives

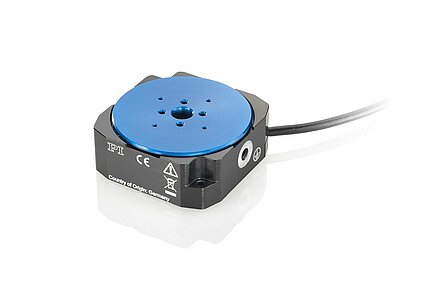

U-628 PILine® Rotation Stage

Miniature Stage with Ultrasonic Piezo Motor and Central Opening

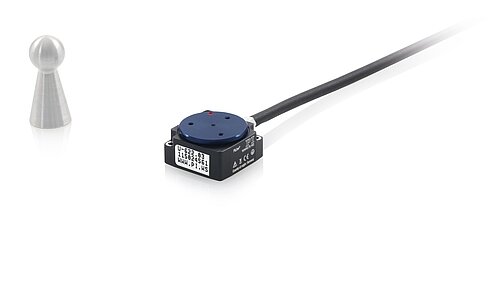

U-622 PILine® Rotation Stage

Miniature Stage with Ultrasonic Piezo Motor

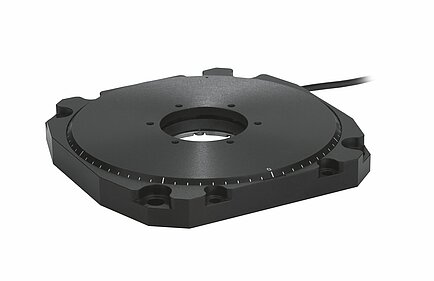

U-651 Rotation Stage with Low-Profile Design

Fast PILine® Direct Drive and Central Opening

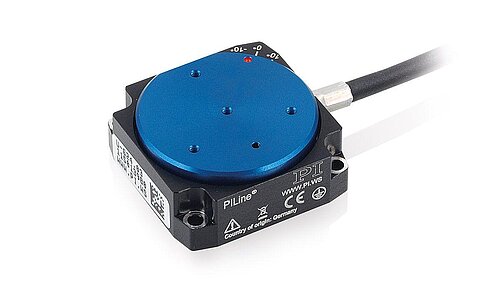

U-624 PILine® Rotation Stage

Miniature Stage with Ultrasonic Piezo Motor

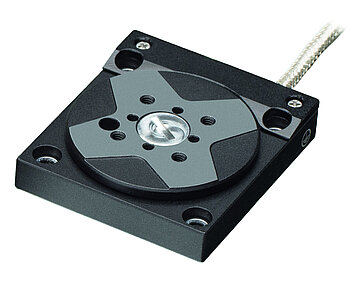

Q-632 Q‑Motion® Rotation Stage

Compact Through Piezo Motor: 30 mm Turntable Diameter

Miniature Rotation Stages with Stepper, DC & Brushless DC (BLDC) Motors

RS-40 Compact Rotation Stage

Precision Positioning

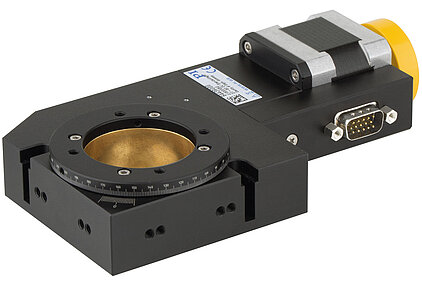

DT-80 Compact Rotation Stage

Large Clear Aperture

Motorized Goniometer Stages

WT-85 Motorized Precision Goniometer

Compact, with Aperture

WT-100 Motorized Precision Goniometer

Compact, with Large Aperture

Tip/Tilt Stages

V-931 High Dynamics PIMag® Voice Coil Tip/Tilt Platform

For Fast Steering Mirrors
