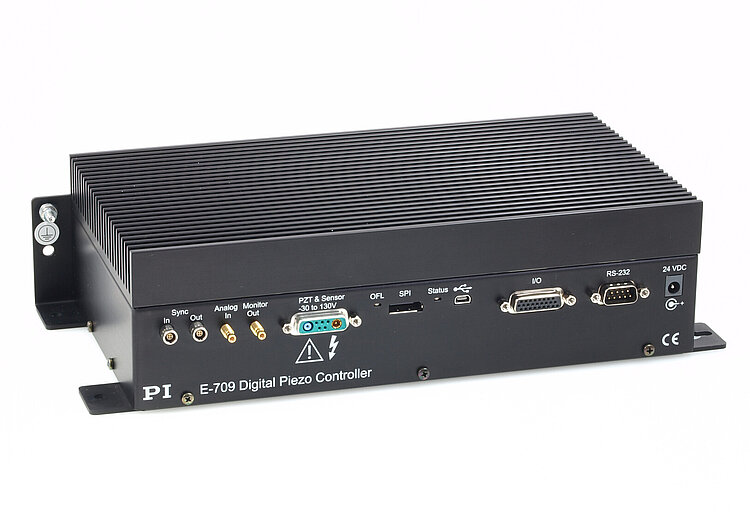

E-709.CHG Digital 1-Channel Piezo Controller
High Output Power for Dynamic Operation, Capacitive Sensors
- Output power up to 50 W
- Linearity error maximum of 0.02 %
- Fast 25 Mbit/s serial interface
- Comprehensive I/O functions
- Extensive software package
Fast piezo controller
1 channel. For piezo-based nanopositioning systems with capacitive sensors. High output current for dynamic applications. Digital controller. Voltage range -30 to 130 V.
Interfaces
USB, RS-232, fast serial interface with up to 25 MBit/s. Additional high-bandwidth analog control input / sensor input. Analog output, e.g., for external amplifiers.
User software and functions
PIMikroMove, PI General Command Set (GCS). Drivers for NI LabVIEW, shared libraries for Windows and Linux. Compatible with µManager, MATLAB. Wave generator. Linearization. Data recorder. Autozero. Trigger I/O. Software-configurable parameters.

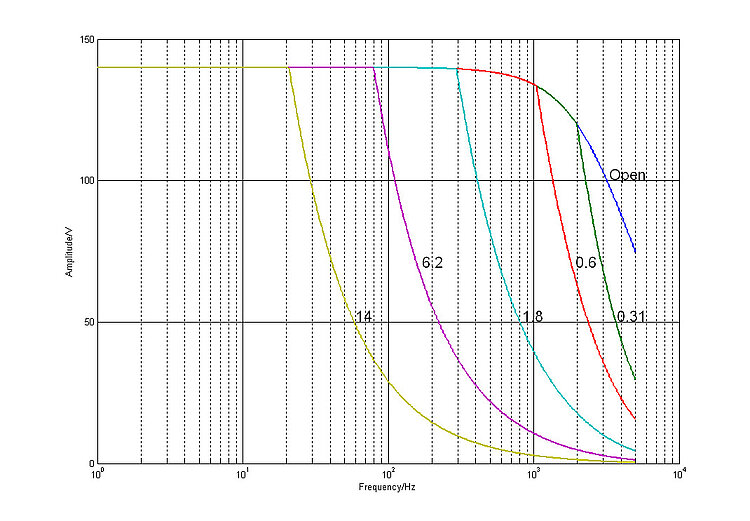

Specifications

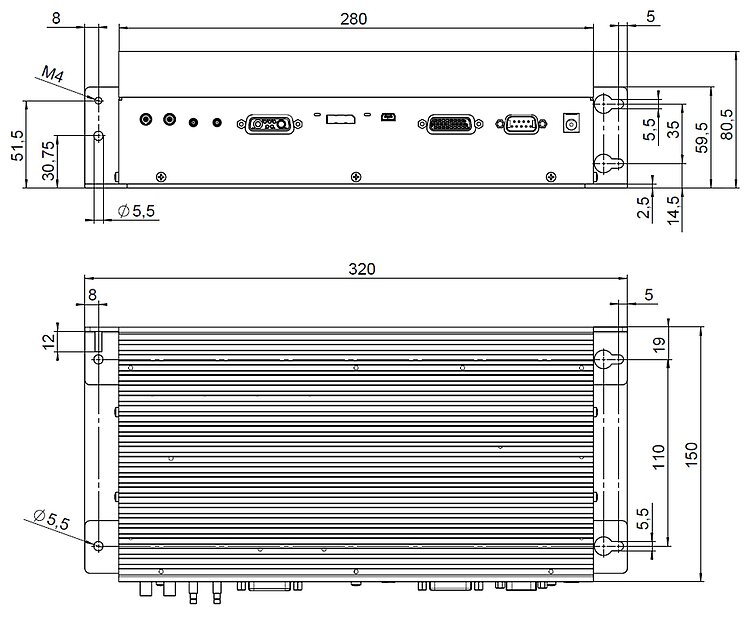

Specifications
Interfaces and operation | E-709.CHG |
---|---|
Communication interfaces | USB, RS-232, SPI |
Piezo / sensor connector | D-sub special 7W2 |
Analog input socket | SMB |
Sensor monitor socket | SMB |
I/O connector | HD D-sub 26 (f) 1 analog input 0 to 10 V (configurable) 1 analog output 0 to 10 V (configurable) 1 monitor piezo voltage -0.3 to 1.3 V 1 digital input (LVTTL, programmable) 5 digital outputs (LVTTL, 3 × predefined, 2 × programmable) |
Command set | PI General Command Set (GCS) |
User software | PIMikroMove |
Application programming interfaces | C, C++, C#, MATLAB, NI LabVIEW, Python; supported by MATLAB, µManager, Andor iQ |
Display and indicators | Status LED, overflow LED |
