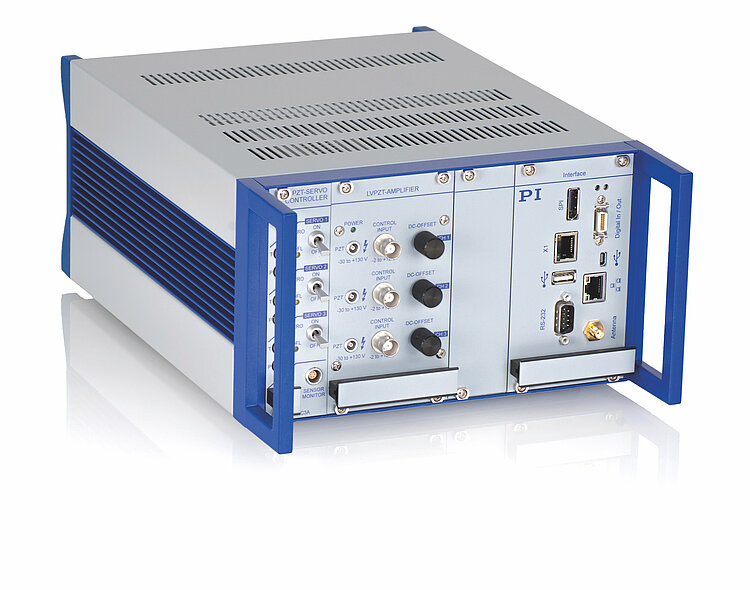

E-500 • E-501 Modular Piezo Controller
Flexible System for Piezo Actuators and Nanopositioners
- Up to three axes; more for customized versions
- Piezo amplifier modules for low voltage and high voltage, 14 to 400 W peak power
- Position servo control modules for capacitive strain gauge sensors, 1 to 3 channels
- PC interface / display modules
- 19" and 9.5" chassis
Modular motion control system for more flexibility
Modular configuration. Supports piezo actuators, piezo-based tip/tilt platforms, and positioning systems with up to three motion axes.
Amplifiers / power amplifiers
Amplifiers / power amplifiers for piezo actuators with up to 135 V, ±250 V or 1000 V operating voltage. Amplifiers with switchable power amplifiers are available for high dynamics. High linearity, also without position feedback, can be achieved with charge-control amplifiers. Amplifier modules are offered for one to three channels per module depending on the performance class.
Sensor modules
PI uses capacitive or strain sensors in its positioning systems according to accuracy requirements. The E-500 supports operation of up to three axes with single- to three-channel sensor modules.
The flexibility of the E-500 system allows mixed operation with different single-channel amplifier or sensor modules. Control takes place either directly at the analog inputs of the amplifiers or via the interface module with digital interfaces for control via an external host.
Specifications
Specifications
Model | E-500.00 | E-501.00 |
---|---|---|
Function | 19" chassis for piezo controller system: Amplifier modules, sensor / servo control modules, interface / display modules | 9.5" chassis for piezo controller system: Amplifier modules, sensor / servo control modules, interface / display modules |
Channels | 1, 2, 3 (max. three amplifier modules) | 1, 3 (max. one amplifier module) |
Dimensions | 450 mm × 132 mm × 296 mm + handles | 236 mm × 132 mm × 296 mm + handles |
Operating voltage | 90-264 V AC, 50-60 Hz | 90-120 / 220-264 V AC, 50-60 Hz |
Max. power consumption | 180 W | 80 W |
Downloads
Datasheet
Documentation
Technical Note A000T0074
Guide to Grounding and Shielding
User Manual PZ62
E-500 / E-501 Series Modular Piezo Controller: Chassis with power supply, amplifier modules (E-503, E-504, E-505, E-506, E-508), sensor and servo-control module (E-509), display and interface modules (E-515, E-517).
Software Files
PI Software Suite C-990.CD1
C-990.CD1 Releasenews
General Software Documentation
User Manual A000T0075
Implementing a C-887 PI Controller in TwinCAT 3.1
Software Manual SM158
PI GCS2 Driver Library for NI LabVIEW
Software Manual SM146
GCS Array Data Format
User Manual A000T0028
Updating PI Software with PIUpdateFinder
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
