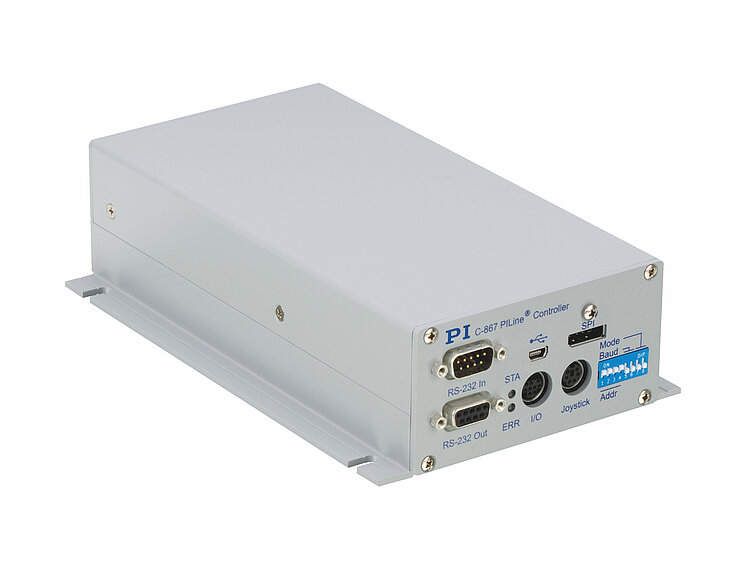

C-867.1U
Piezo motor controller for PILine® systems; 1 axis; USB, RS-232, SPI, I/O, analog joystick; networkable via daisy chain
C-867.1U PILine
For Single-Axis Positioning Stages with PILine
- Integrated power amplifier with dynamic frequency control
- Multifunctional encoder input: A/B, Sin/Cos, BiSS
- Macro programmable for stand-alone functionality
- Integrated interfaces: USB, RS-232, SPI, I/O, joystick
- Daisy chain networkability

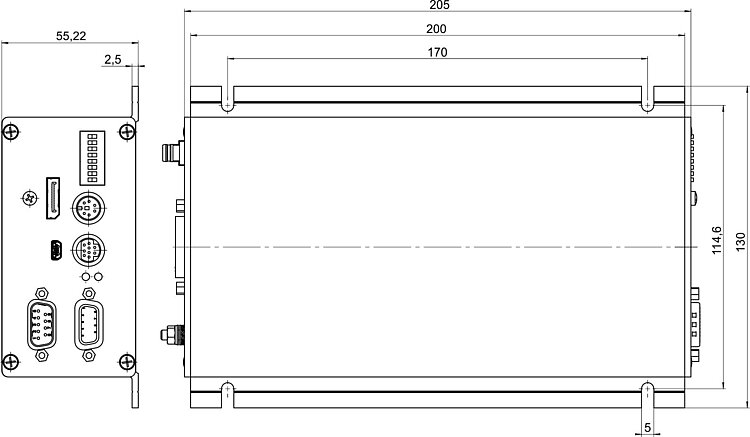

C-867.1U, dimensions in mm
C-867.1U PILine
Product Description
Specifications
Downloads
Quote / Order
Single-axis benchtop device for PILine® ultrasonic piezo motors, network capable with up to 16 units on a single interface
Servo controller with dedicated PID controller for PILine® ultrasonic piezo motors.
Power amplifier for PILine® ultrasonic piezo motors and positioners with performance class 1 and 2 piezo motors. Dynamic frequency control for optimal control.
Application and use cases
Micromanipulation
Automation
Biotechnology
Sample manipulation
Sample positioning
Optical measuring technology
Technology
Motion profiles: Point-to-point, trapezoidal velocity profile. User-definable trajectories (e.g., circles, sine curves) from externally fed points.
Interfaces and communication: USB-, RS-232-, SPI interface for commanding. I/O lines for automation. Connector for analog joystick.
Encoder input: Differentially transmitted A/B signals (TTL) or sin/cos signals (1 Vss). BiSS interface for absolute encoders. Inputs for TTL signals from limit and reference switches.
Functionality and software
Powerful macro programming language. Nonvolatile macro memory, e.g., for stand-alone operation with autostart macro. Data recorder. ID chip detection for fast startup. PID controller, parameters modifiable during operation.
Extensive software support, e.g., for NI LabVIEW, C, C++, MATLAB, Python. PIMikroMove user software.
Scope of delivery and accessories
Scope of delivery
Wide input range power supply
Power cord
USB cable
PI Software Suite
Accessories (optional)
Network cable for daisy-chain network
I/O cable
Analog joysticks for 2 or 3 axes
Pushbutton box
Specifications
Specifications
Basics | C-867.1U |
|---|---|
Housing type | Benchtop device |
Drive type | PILine® piezo motor, performance classes 1 and 2 |
Axes | 1 |
Application-related functions | Macro; startup macro; data recorder; ID chip detection |
Protective functions | Automatic motor stop when a programmable position error or power level is exceeded; control is disabled when a programmable position error or power level is exceeded |
Configuration management | Import of parameter files; manual parameter input; reading the ID chip |
Interfaces and operation | C-867.1U |
|---|---|
Communication interfaces | USB, RS-232, SPI |
Networkability | Daisy chain |
Manual control(s) | Analog joystick |
Command set | GCS 2.0 |
User software | PIMikroMove |
Application programming interfaces | C, C++, C#; MATLAB; NI LabVIEW; Python |
Analog inputs | 4 |
Analog input signal | 0 V to 5 V |
Digital inputs | 4 |
Digital input signal | TTL |
Digital outputs | 4 |
Digital output signal | TTL |
Miscellaneous | C-867.1U |
|---|---|
Motor / sensor connector | D-sub 15 (f) |
I/O connector | Mini-DIN, 9-pole (f) |
Connector USB | USB Mini-B socket |
Connector RS-232 | D-sub 9 (m) |
Connector SPI | DisplayPort |
Connector for supply voltage | M8 4-pole (m) |
Operating voltage | 24 V DC |
Max. current consumption | 300 mA plus motor current (max. 2 A) |
Operating temperature range | 5 °C to 40 °C |
Ground | 1 kg |
